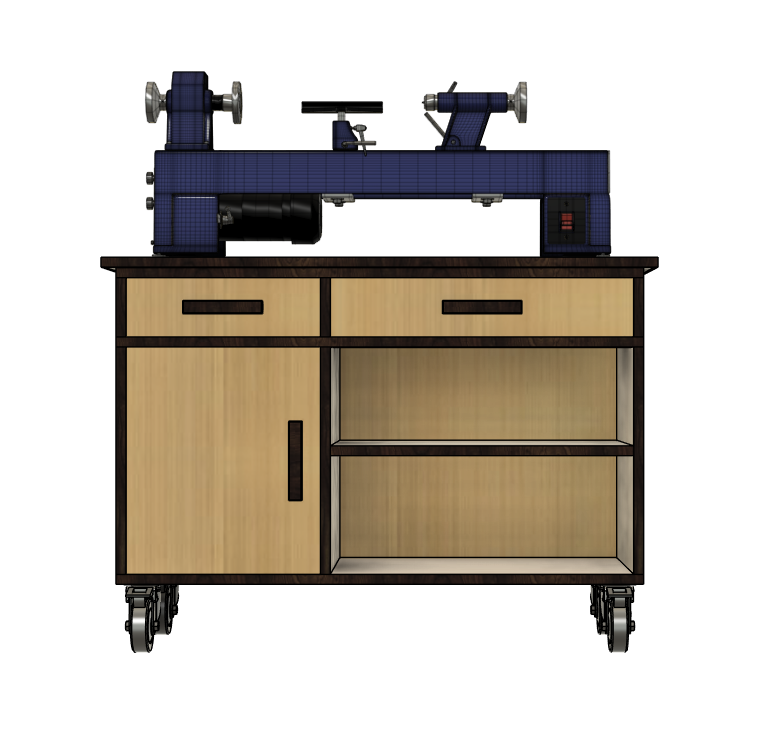

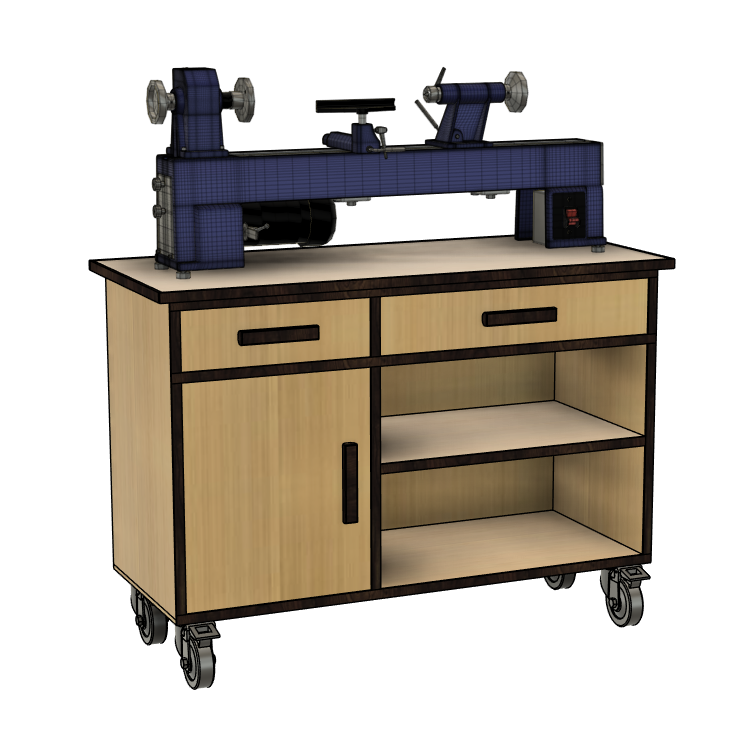

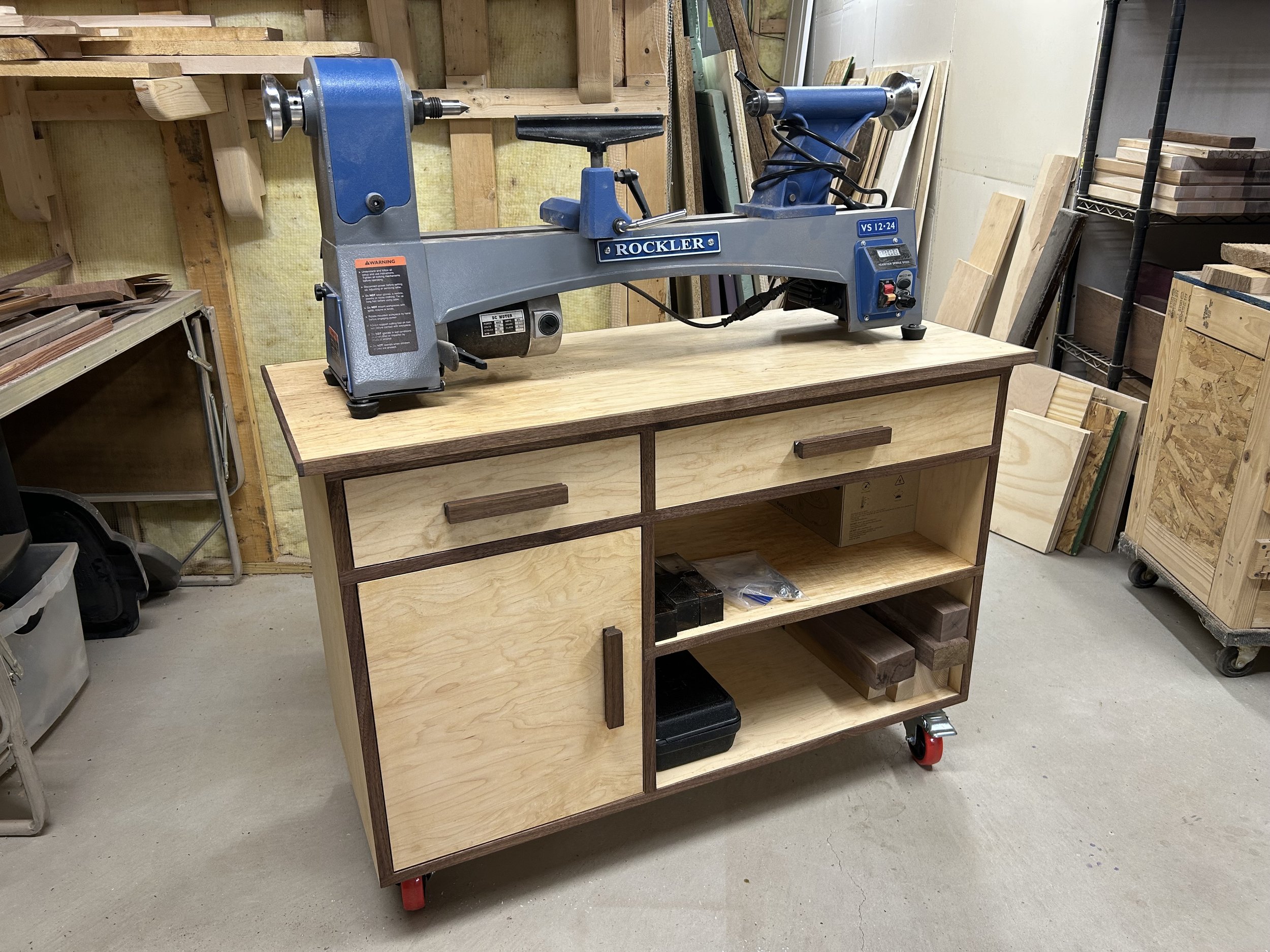

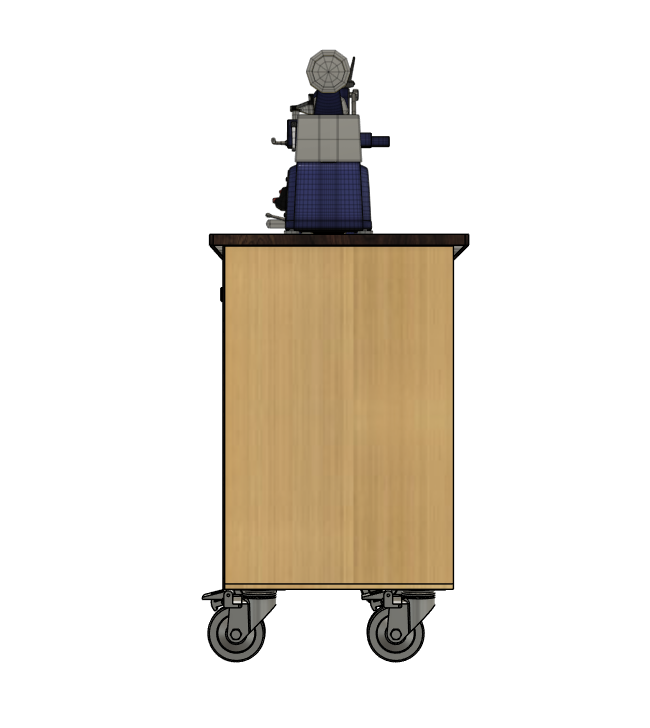

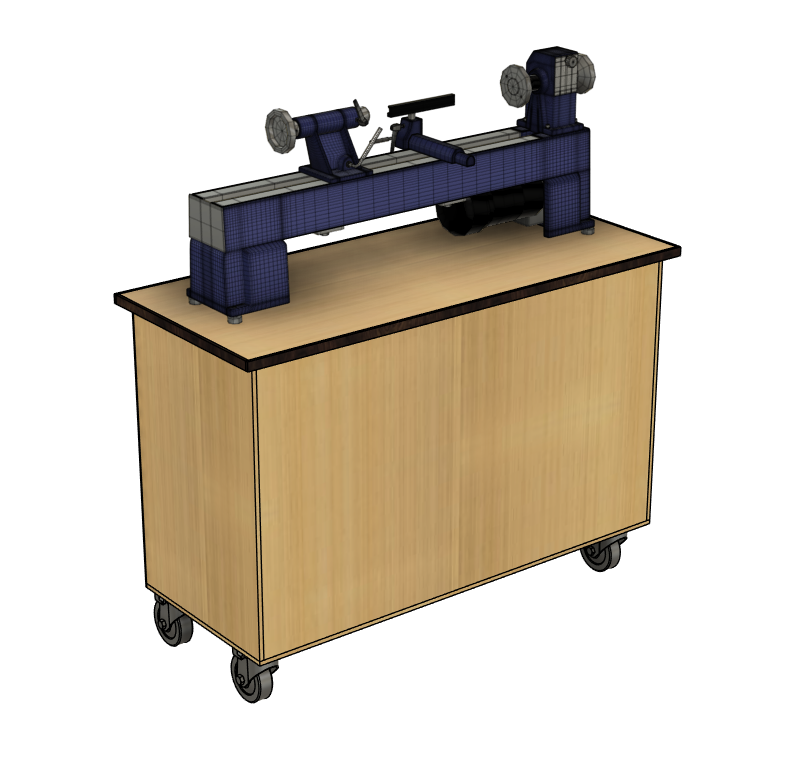

I desperately needed a better cart for my lathe. When designing this one, I incorporated two drawers where I could easily store my lathe tools and accessories and keep them organized. I added an enclosed area with a door to keep other items dust free as well as some open shelving next to it to store turning blanks and anything else that needs a home. The entire thing is on heavy duty lockable casters to secure it while operating. And it's only 18" deep so it tucks away nicely against the wall when it's not in use. The overall surface area of the top is 42" x 18" and the height of the cart is 29 1/2" making it the perfect height for someone 6ft tall.
Dimensions: All measurements are in Imperial format only!
File Format: This document is a PDF and readable using Adobe Acrobat Reader or other PDF-compatible viewers.
This document contains detailed step-by-step instructions on building the Fisher's Lathe Cart that is depicted in the video on Fisher's Shop YouTube channel. Haven't seen the video? Here's a link to it!
**Please note this is a DIGITAL FILE, not the physical item shown as the example.
